Signal Flange Gate Valve

This valve is manufactured in China and fully compliant with Chinese national fire safety standards. It has passed rigorous quality and safety testing, including CCCF (China Compulsory Certification for Fire Products), ensuring reliable performance and long service life. While it is certified for the Chinese domestic market, it meets international design and quality specifications and can be used in many projects worldwide where local certification is not mandatory.

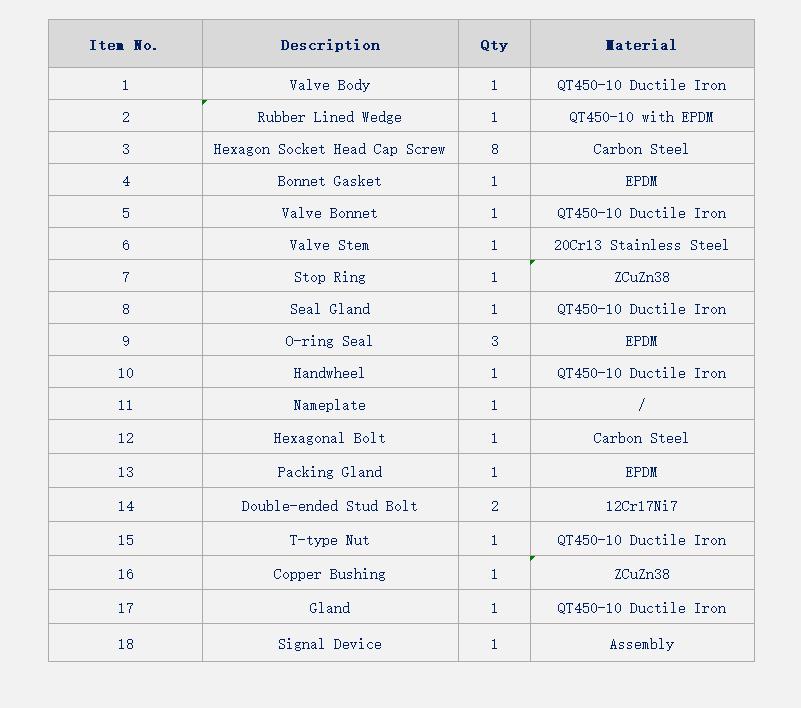

Components and Materials List of Fire Signal Gate Valve Non Rising Stem Flanged Resilient Seat

---------------------------------------------------------------------------

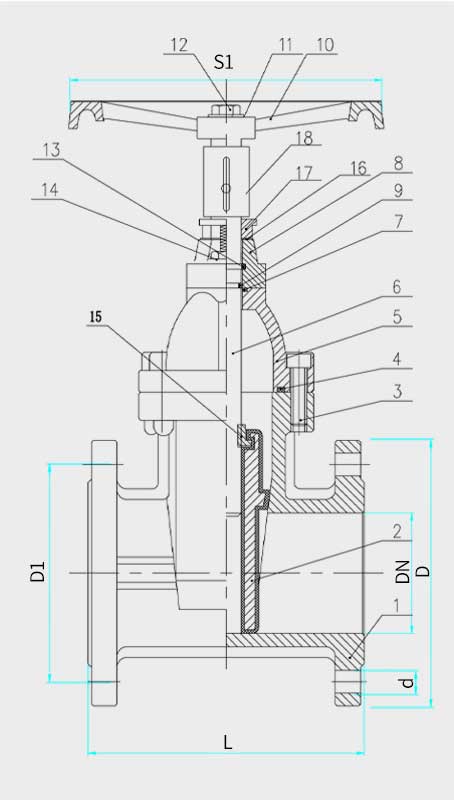

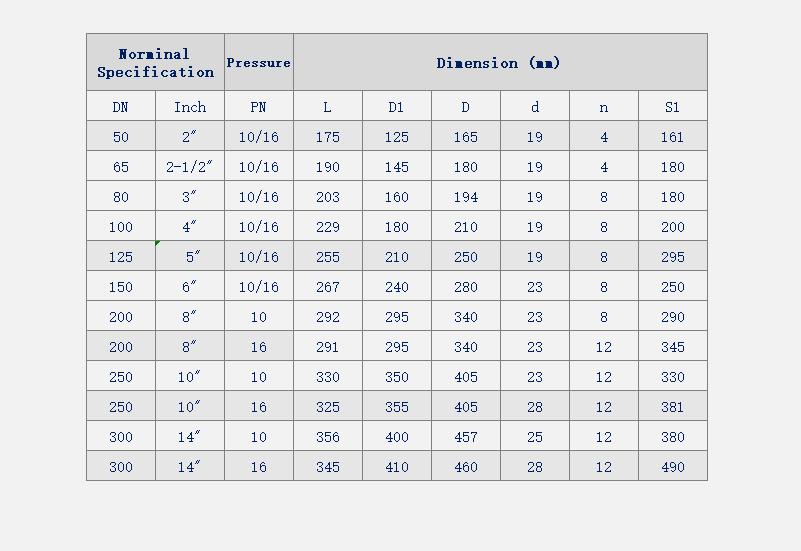

Dimension & Technical Specification of Z45X Ductile Iron Signal Flange Gate Valve

-------------------------------------------------------------------

Core Advantages of Flanged Non-Rising Stem Signal Gate Valve

----------------------------------------

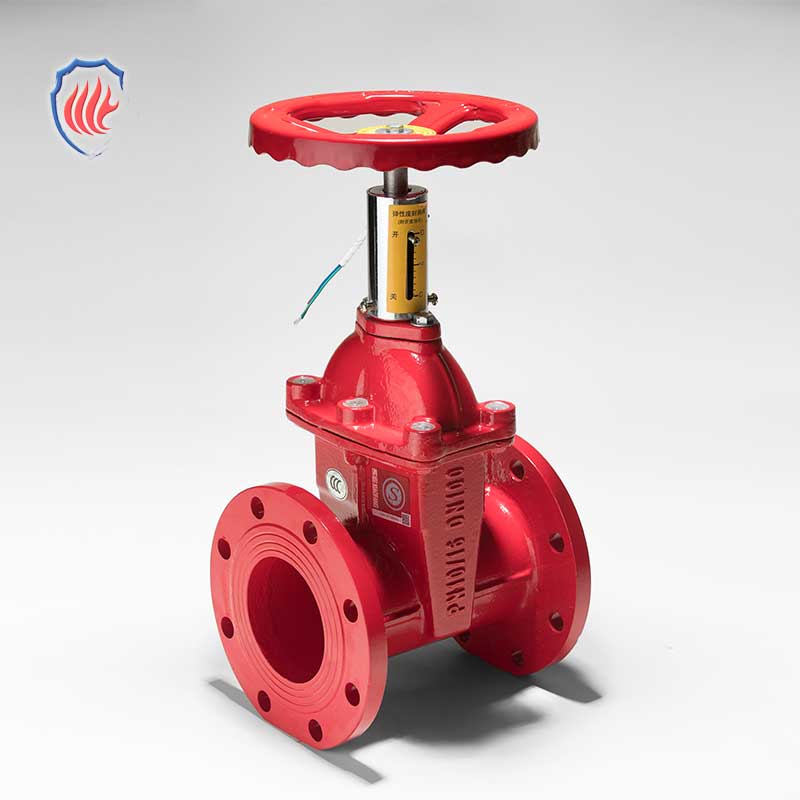

Non-Rising Stem Flanged Resilient Seated Signal Gate Valve (Z45X-16Q / XZ45X-16Q)

• Signal Feedback Function for Remote Monitoring & Safety Management--The Z45X-16Q non-rising stem flanged signal gate valve is equipped with a signal feedback device. It transmits real-time open/closed status signals of the valve to the control system, realizing remote status monitoring. No on-site manual inspection is required, perfectly matching fire alarm linkage systems for building fire protection pipelines.

• Flanged Connection for Stable, Reliable Assembly--Designed with standard flanged ends, this resilient seated signal gate valve achieves firm, leak-free connection with pipelines. Convenient disassembly and maintenance make it adaptable to municipal water supply, underground pipe galleries and large-scale fire water pipeline projects. The connection structure withstands long-term pipeline vibration.

• Compact Non-Rising Stem Structure, Space-Saving Layout--Adopting the non-rising stem (NRS) design, the valve stem does not extend outward during opening. It occupies less vertical installation space, ideal for limited-space conditions such as basement pipe trenches and overhead piping, solving installation restrictions of traditional rising stem gate valves.

• Full Bore Straight Channel, Low Fluid Resistance--Built with a full through bore flow path, the signal flanged gate valve avoids medium deposition and flow dead zones. It guarantees low pressure loss during medium circulation, suitable for long-term continuous delivery of fire water, domestic tap water and circulating water systems.

PN16 Non Rising Stem Elastic Seated Signal Flange Gate Valve CNC Machining Process | Jingda Valve Production

------------------------------------------------------------------------

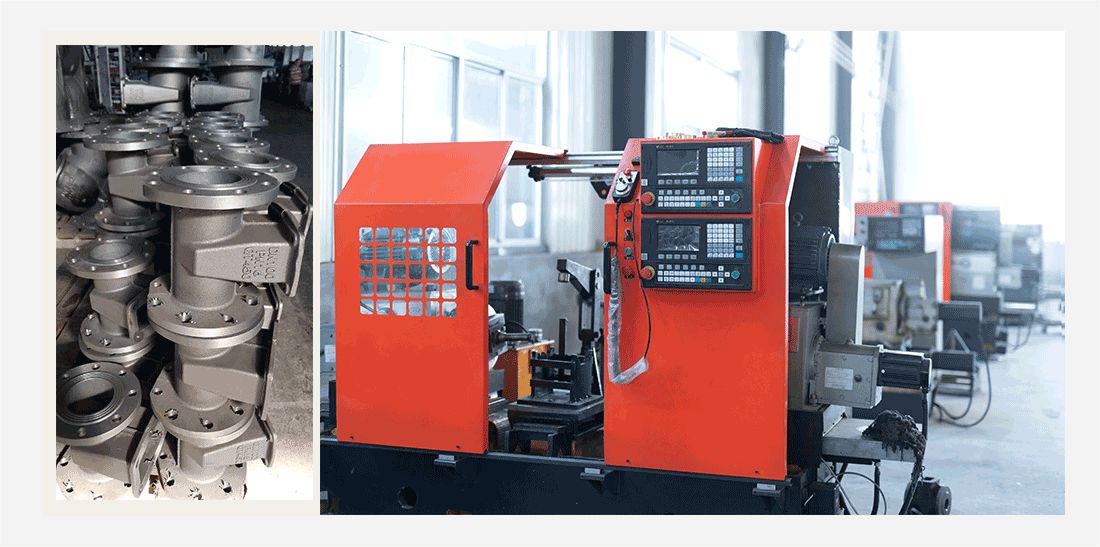

JINGDA adopts CNC precision lathe for grooved valve body machining to ensure precise groove dimension for fire protection grooved pipe connection.

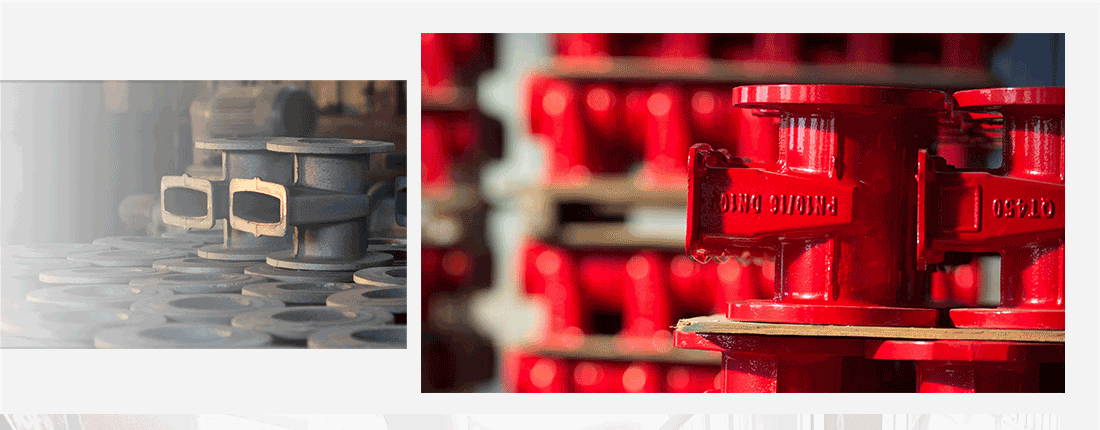

Surface Polishing & Deburring for Z45X Resilient Seated Signal Gate Valve

----------------------------------------------------------------

All QT450 cast valve bodies go through polishing process to remove burrs, improve corrosion resistance and sealing matching precision.

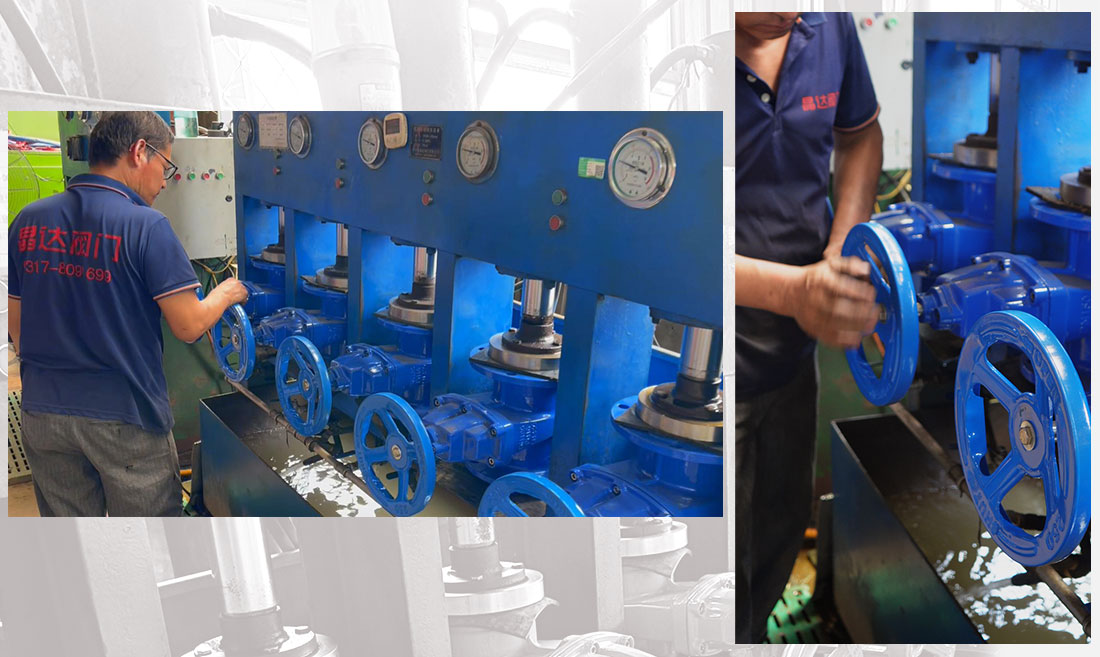

Hydrostatic Pressure Test & Leakage Inspection of Water Supply Fire Signal Non Rising Stem Flange Gate Valve

—————————————————————————----------------

Every finished grooved lever butterfly valve undergoes 1.5PN hydrostatic pressure leakage test to meet CCCF fire valve standard requirements.

Complete Assembly Flow of DN50~DN600 Signal Flange Gate Valve

—————————————————————————-----------

Professional workers assemble disc, EPDM seat, stem and lever strictly following standard assembly procedure for long service life.

About Jingda Valve | Professional Industrial Valve Manufacturer from China

----------------------------------------------------------------------

Botou Jingda Valve Co., Ltd. is a professional manufacturer specialized in producing high-quality valves. The company has advanced internal management standards and enjoys a high reputation in the casting industry with 15 years of production experience.

We own a modern factory, sophisticated manufacturing, processing and testing equipment, as well as strong technical strength. Our factory employs skilled technicians and operators, with a total staff of 100 people. Our products have passed ISO 9001:2015 and CE certifications.

Our main products include butterfly valves, gate valves, ball valves, check valves, Y-type strainers, rubber joints, Pipe Fittings,etc.

With high-quality products and a complete service system, our products are exported to dozens of countries and regions, including Europe, America, Southeast Asia, the Middle East, Australia, North Africa, South Korea, Hong Kong and Taiwan, with an annual export volume of 10 million US dollars.

Company tenet: Professional technical support and perfect after-sales service!

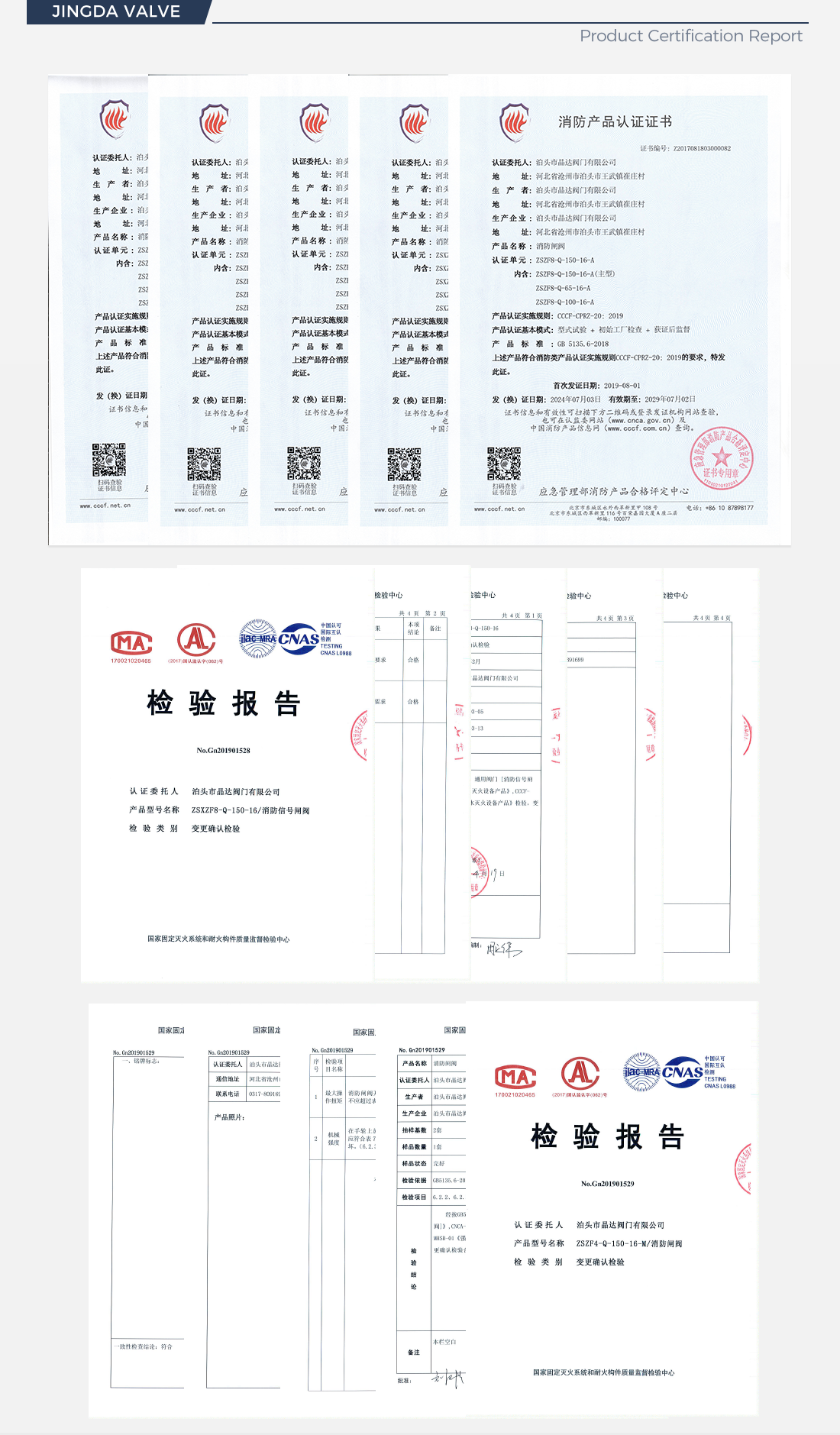

Jingda Valve Official Certifications & Third-party Test Reports

----------------------------------------------------------------
