500X Pressure Relief Valve is a hydraulic control valve designed for stable pressure regulation in water supply pipelines, fire protection systems and municipal engineering. It features automatic pressure relief, steady operation and zero leakage, effectively protecting pipeline equipment from overpressure damage, widely used for industrial and civil water supply projects.
500X Pressure Relief Valve for Fire Fighting Systm
Product Overview
_____________________________________________

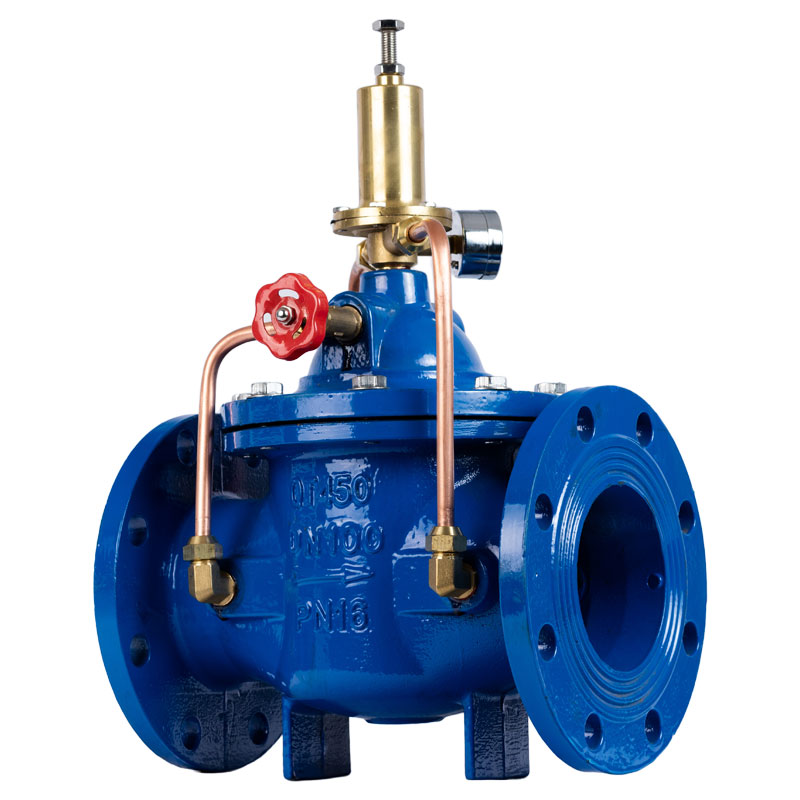

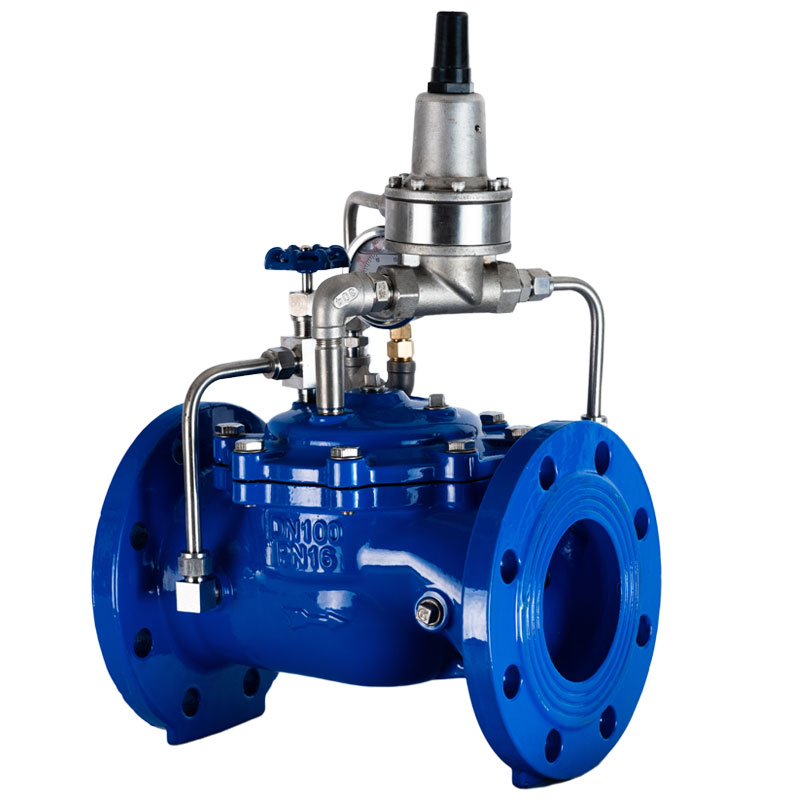

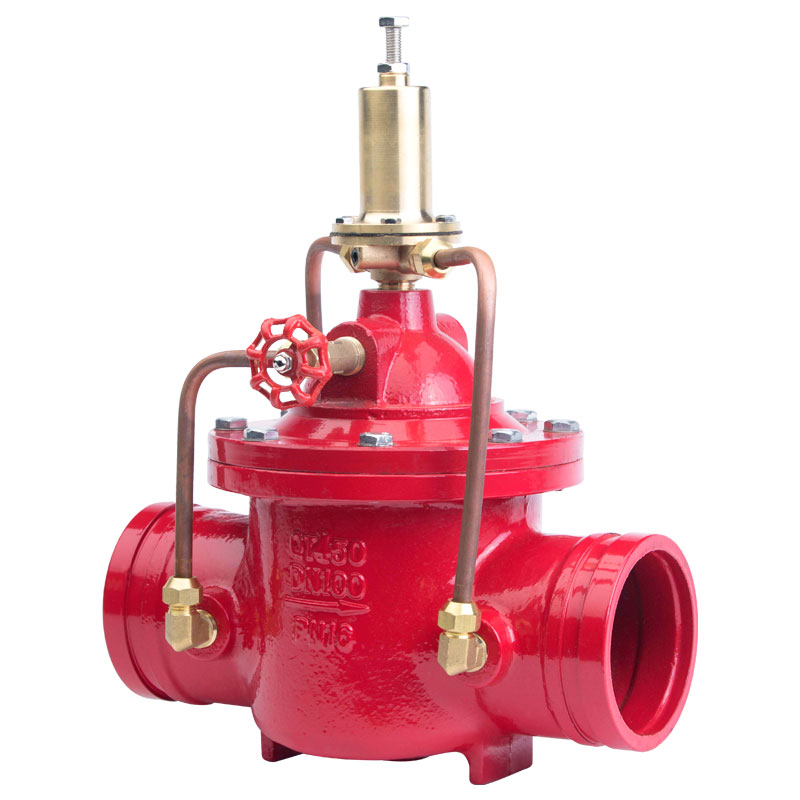

The 500X Pressure Relief Valve is a high-performance hydraulic control pressure relief valve, specially engineered for water supply networks, fire fighting systems and municipal pipeline projects. This pilot-operated pressure relief valve delivers precise pressure control, automatic pressure relief and pressure maintenance, ensuring stable pipeline pressure and preventing overpressure failures.
Built with premium ductile iron body and durable internal components, the 500X Pressure Relief Valve offers strong corrosion resistance, long service life and easy installation. It complies with international pipeline standards, making it the ideal choice for urban water supply, industrial piping and fire protection systems requiring reliable pressure management.
Core Advantages of 500X Pressure Relief Valve
_______________________________________________________
• High-precision control
• Wide pressure reduction ratio: Capable of handling high inlet pressure and reducing it to a very low outlet pressure
• Flow independence: Within a certain range of flow variation, it can automatically adjust the opening degree to maintain the outlet pressure basically constant.
• Reduce pressure without reducing flow
• Convenient for maintenance
Components and Materials List
__________________________________________
